Hansen Stopcock
Innovative features
Easy to Install
Designed for fast and easy installation with no special tools or expertise required.
Compatibility
Works with PE100 PN20 (20mm) and PN16 (25mm & 32mm) pipes, supporting up to 20 bar pressure for safe and reliable performance in demanding applications.
Leak Prevention
Ensures a secure, leak-proof connection with high-quality materials and a well-engineered structure.
Precision Flow Control
Provides smooth operation for easy handling without compromising performance.
Cost-Effective & Flexible
Made from POK material for the optimal balance of durability, flexibility, and cost-effectiveness, delivering premium quality at a competitive price.
Description

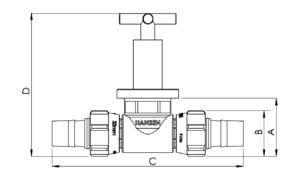

Hansen Stopcock Cross Handle – Standard Series (Whole Set)
| Code | Size (mm) | A | B | C | D |
| HSC DN20 | 20 | 39 | 29 | 168 | 121 |
| HSC DN25 | 25 | 43 | 36 | 170 | 125 |
| HSC DN32 | 32 | 51 | 44 | 186 | 130 |

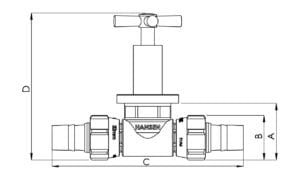

Hansen Stopcock Cross Handle – A Series (Whole Set)
| Code | Size (mm) | A | B | C | D |
| HSC DN20 | 20 | 39 | 29 | 168 | 123 |
| HSC DN25 | 25 | 43 | 36 | 170 | 128 |
| HSC DN32 | 32 | 51 | 44 | 186 | 133 |
