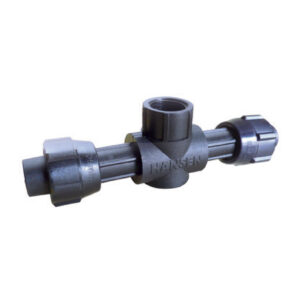

Tee with Female Thread Branch (BSPT Female)
Description
Male Thread Adaptor (BSPT Male)

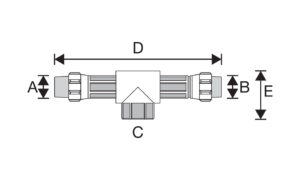

| Code | Size (mm) | A | B | C | D | E |
| HTFTB 20.20.½ | 20 x 20 x ½” | 30 | 30 | ½” BSPT Female | 175 | 47 |
| HTFTB 25.25.½ | 25 x 25 x ½” | 36 | 36 | ½” BSPT Female | 159 | 47 |
| HTFTB 32.25.½ | 32 x 25 x ½” | 44 | 36 | ½” BSPT Female | 168 | 47 |
| HTFTB 32.32.½ | 32 x 32 x ½” | 44 | 44 | ½” BSPT Female | 174 | 47 |
| HTFTB 25.25.1 | 25 x 25 x 1″ | 36 | 36 | 1″ BSPT Female | 164 | 53 |
| HTFTB 32.25.1 | 32 x 25 x 1″ | 44 | 36 | 1″ BSPT Female | 175 | 53 |
| HTFTB 32.32.1 | 32 x 32 x 1″ | 44 | 44 | 1″ BSPT Female | 180 | 53 |
